A mutable, format-neutral interface to a computational-graph model. More...

#include <graph_builder.hpp>

Detailed Description

Two-stage workflow: explore and configure a model (introspection, dynamic-dimension binding) with GraphBuilder, then freeze it into an immutable, evaluable Function.

GraphBuilder b("model.onnx");
b.bind_dim("batch", 4);
Function f = b.create("net");

Date: 2026

Extra doc: https://github.com/casadi/casadi/wiki/L_2jd

Definition at line 49 of file graph_builder.hpp.

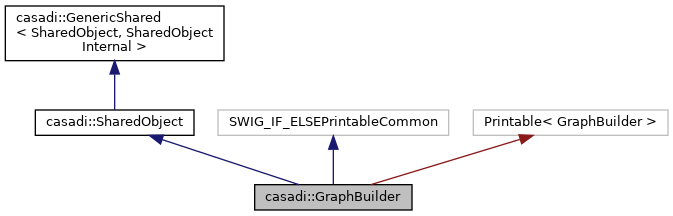

Inheritance diagram for casadi::GraphBuilder:

[legend]

Public Types
using	internal_base_type = SharedObjectInternal

using	base_type = SharedObject

Public Member Functions
std::string	type_name () const
	Readable name of the class. More...

	GraphBuilder ()
	Default constructor. More...

	GraphBuilder (const std::string &model_path, const Dict &opts=Dict())
	Construct from a model file (import lifecycle; format from the file suffix) More...

	GraphBuilder (const Function &f, const Dict &opts=Dict())
	Construct from a CasADi Function (export lifecycle) More...

const std::string &	name () const
	Name of the model. More...

Function	create (const std::string &name, const std::vector< std::string > &name_in, const std::vector< std::string > &name_out, const Dict &opts=Dict()) const
	Freeze into an evaluable Function. More...

Function	create (const std::string &name, const Dict &opts=Dict()) const
	Freeze into an evaluable Function, exposing all model inputs and outputs. More...

Function	create () const
	Freeze into an evaluable Function, default naming. More...

void	export_onnx (const std::string &filename, const Dict &opts=Dict())
	Export to an ONNX model file. More...

std::string	class_name () const
	Get class name. More...

void	disp (std::ostream &stream, bool more=false) const
	Print a description of the object. More...

std::string	get_str (bool more=false) const
	Get string representation. More...

std::string	debug_repr () const

bool	is_null () const
	Is a null pointer? More...

casadi_int	__hash__ () const
	Returns a number that is unique for a given Node. More...

Model introspection
casadi_int	n_in () const
	Declared shape of a tensor (input or output) by name; -1 for dynamic dimensions. More...

casadi_int	n_out () const
	Declared shape of a tensor (input or output) by name; -1 for dynamic dimensions. More...

std::vector< std::string >	name_in () const
	Declared shape of a tensor (input or output) by name; -1 for dynamic dimensions. More...

std::vector< std::string >	name_out () const
	Declared shape of a tensor (input or output) by name; -1 for dynamic dimensions. More...

std::vector< casadi_int >	dimension (const std::string &name) const
	Declared shape of a tensor (input or output) by name; -1 for dynamic dimensions. More...

std::string	dtype (const std::string &name) const
	Element type name of a tensor (input or output) by name (FLOAT, INT64, ...) More...

std::vector< std::string >	dimension_param (const std::string &name) const
	Per-axis symbolic dimension name of a tensor by name ("" for static axes) More...

std::vector< std::string >	dynamic_params () const
	Names of the symbolic/dynamic dimensions in the model. More...

Configuration
void	bind_dim (const std::string &param, casadi_int value)
	Bind a symbolic/dynamic dimension to a concrete size. More...

void	bind_shape (const std::string &input_name, const std::vector< casadi_int > &shape)
	Pin the full shape of an input. More...

void	set (const std::string &input_name, const std::vector< double > &value)
	Bake a fixed value into an input; it is fed at create() and not exposed as a Function input. More...

void	set (const std::string &input_name, double value)
	Bake a scalar value into an input. More...

Member Typedef Documentation

◆ base_type

using casadi::SharedObject::base_type = SharedObject

inherited

Definition at line 103 of file shared_object.hpp.

◆ internal_base_type

using casadi::SharedObject::internal_base_type = SharedObjectInternal

inherited

Definition at line 102 of file shared_object.hpp.

Constructor & Destructor Documentation

◆ GraphBuilder() [1/3]

casadi::GraphBuilder::GraphBuilder ( )

◆ GraphBuilder() [2/3]

casadi::GraphBuilder::GraphBuilder	(	const std::string &	model_path,
		const Dict &	opts = `Dict()`
	)

explicit

◆ GraphBuilder() [3/3]

casadi::GraphBuilder::GraphBuilder	(	const Function &	f,
		const Dict &	opts = `Dict()`
	)

explicit

Member Function Documentation

◆ hash()

casadi_int casadi::GenericShared< SharedObject , SharedObjectInternal >::__hash__

inherited

If the Object does not point to any node, "0" is returned.

Extra doc: https://github.com/casadi/casadi/wiki/L_av

Definition at line 123 of file generic_shared_impl.hpp.

◆ bind_dim()

void casadi::GraphBuilder::bind_dim	(	const std::string &	param,
		casadi_int	value
	)

◆ bind_shape()

void casadi::GraphBuilder::bind_shape	(	const std::string &	input_name,
		const std::vector< casadi_int > &	shape
	)

◆ class_name()

std::string casadi::SharedObject::class_name ( ) const

inherited

Extra doc: https://github.com/casadi/casadi/wiki/L_au

◆ create() [1/3]

Function casadi::GraphBuilder::create ( ) const

inline

Extra doc: https://github.com/casadi/casadi/wiki/L_2jg

Definition at line 127 of file graph_builder.hpp.

◆ create() [2/3]

Function casadi::GraphBuilder::create	(	const std::string &	name,
		const Dict &	opts = `Dict()`
	)		const

Parameters

name	Name assigned to the resulting Function
opts	See the full create() overload

Extra doc: https://github.com/casadi/casadi/wiki/L_2jf

◆ create() [3/3]

Function casadi::GraphBuilder::create	(	const std::string &	name,
		const std::vector< std::string > &	name_in,
		const std::vector< std::string > &	name_out,
		const Dict &	opts = `Dict()`
	)		const

Parameters

name	Name assigned to the resulting Function
name_in	Names of the inputs to expose (empty = all model inputs)
name_out	Names of the outputs to expose (empty = all model outputs)
opts	"symbolic" (bool, default false) and "backend" (numeric backend, default "ort"); any remaining options pass through to the backend.

Extra doc: https://github.com/casadi/casadi/wiki/L_2je

◆ debug_repr()

std::string casadi::GenericShared< SharedObject , SharedObjectInternal >::debug_repr

inherited

Definition at line 112 of file generic_shared_impl.hpp.

◆ dimension()

std::vector<casadi_int> casadi::GraphBuilder::dimension ( const std::string & name ) const

◆ dimension_param()

std::vector<std::string> casadi::GraphBuilder::dimension_param ( const std::string & name ) const

◆ disp()

void casadi::SharedObject::disp	(	std::ostream &	stream,
		bool	more = `false`
	)		const

inherited

◆ dtype()

std::string casadi::GraphBuilder::dtype ( const std::string & name ) const

◆ dynamic_params()

std::vector<std::string> casadi::GraphBuilder::dynamic_params ( ) const

◆ export_onnx()

void casadi::GraphBuilder::export_onnx	(	const std::string &	filename,
		const Dict &	opts = `Dict()`
	)

Extra doc: https://github.com/casadi/casadi/wiki/L_2jh

◆ get_str()

std::string casadi::SharedObject::get_str ( bool more = false ) const

inlineinherited

Definition at line 91 of file shared_object.hpp.

◆ is_null()

bool casadi::GenericShared< SharedObject , SharedObjectInternal >::is_null

inherited

Definition at line 116 of file generic_shared_impl.hpp.

◆ n_in()

casadi_int casadi::GraphBuilder::n_in ( ) const

◆ n_out()

casadi_int casadi::GraphBuilder::n_out ( ) const

◆ name()

const std::string& casadi::GraphBuilder::name ( ) const

◆ name_in()

std::vector<std::string> casadi::GraphBuilder::name_in ( ) const

◆ name_out()

std::vector<std::string> casadi::GraphBuilder::name_out ( ) const

◆ set() [1/2]

void casadi::GraphBuilder::set	(	const std::string &	input_name,
		const std::vector< double > &	value
	)

◆ set() [2/2]

void casadi::GraphBuilder::set	(	const std::string &	input_name,
		double	value
	)

◆ type_name()

std::string casadi::GraphBuilder::type_name ( ) const

inline

Definition at line 54 of file graph_builder.hpp.

The documentation for this class was generated from the following file:

graph_builder.hpp
